Much
more versatile than a power winch, a hand winch allows you
to extricate your vehicle from almost any angle. Just apply
some muscle, and away you go!
The

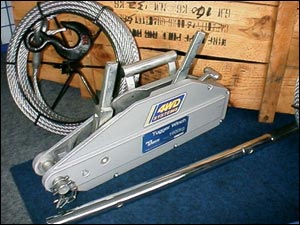

Systems Wire Rope Hand Winch
is an extremely versatile winch in that it can be used at
any angle and is not restricted in rope length. The design
enables wire rope to be fed through 2 sets of wear resistant
locking jaws by a single operating lever. The locking force
on the wire rope increases as the load on the winch increases.
Should the winch be overloaded the shear pins will shear
and secure the load while avoiding damage to the unit.
 |
-
Lightweight corrosion free aluminium body
-
Wear resistant alloy steel jaws
-
Shear pins to prevent overloading (spare
pins in handle)
-
Rope reeler allows convenient storage of
wire rope when not in use
-
Mechanism simple to operate
|
|
|
|
| Operating
Instructions
Push

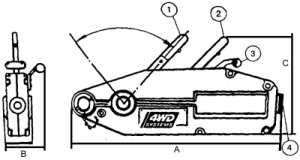

the rope release lever (3) forward to the front end.
Insert the tapered end of the wire rope through the
wire inlet (4). Feed the rope until it extends through
the outlet; when the desired length is obtained, lock
the wire by pushing release lever (3) backward.
Remove
the anchor pin from the front end of the winch, position
your anchoring wire/chain or shackle between the slot
and lock in the anchoring pin. To lock the anchoring
pin, turn and push the pin into position and secure
the pin with the safety clip.
To
hoist or haul load, attach handle onto the operating
lever (1), crank the operating lever (1) forward and
backward evenly.
To
lower load, attach handle onto the reversing lever
(2), crank the reversing lever (2) backward and forward
evenly.
|
| |
| |
|
| Lifting
Capacity |
1.6tn |
| Hauling
Capacity |
2.5tn |
| Operating
Effort (at rated load) |
42kg |
| Handle
length |
1120mm |
| Rope
length |
20M |
| Rope
diameter |
11mm |
| Overall
size (mm) |
545
x 97 x 260 |
|
Safety
Instructions
When
winch is not in use, return the release lever (3)
to free position to remove tension
Remove
dirt & grit from wire rope & winch
Do
not use rope that is kinked or damaged
|
|
