These
photographs represent the critical points of the installation
of a LOKKA - however some models are far simpler
to fit.
A
comprehensive owners manual, including fitting instructions,
comes with each LOKKA. Please read the entire booklet
and complete the warranty information on the last page of
the booklet.
Typical
2 Pinion fitment - suits Hilux (front - all, rear -
pre 1990), Landcruiser (front -post 1990), Patrol (front),
Isuzu (Jackaroo/Rodeo), Dana (Jeep/Ford)
|
|
|

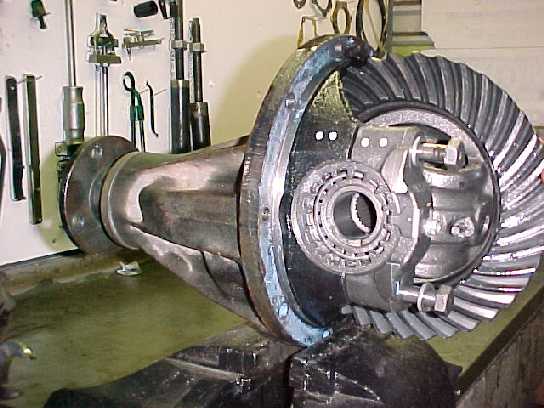

| Mark
carrier caps |

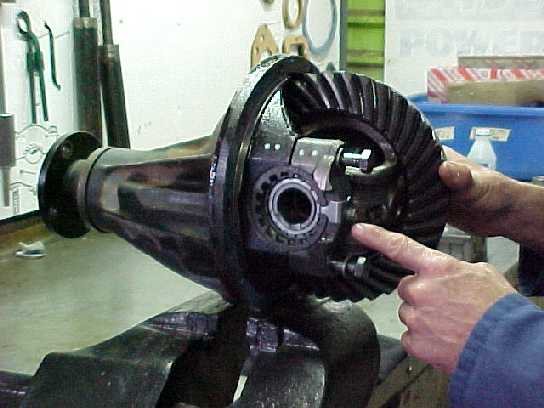

Do
NOT alter carrier adjusters |
|
|
|

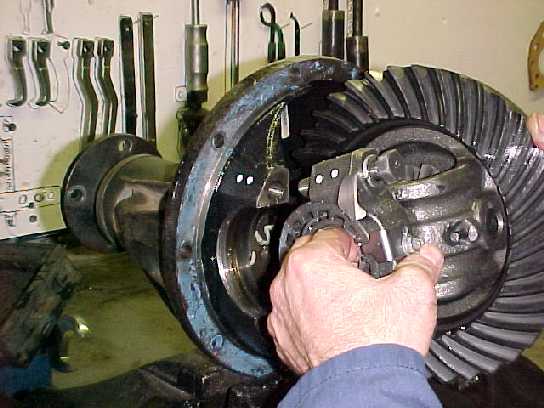

| Remove
carrier assembly |

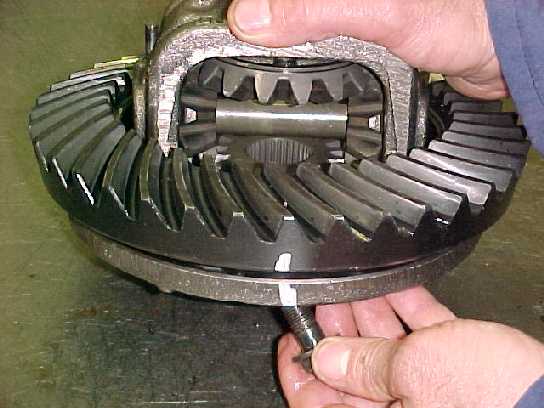

Mark
crown position |
|
|
|
| Refit
washers to axle gears |
Check
spacer clearance is 6-20" |
|
 |
|

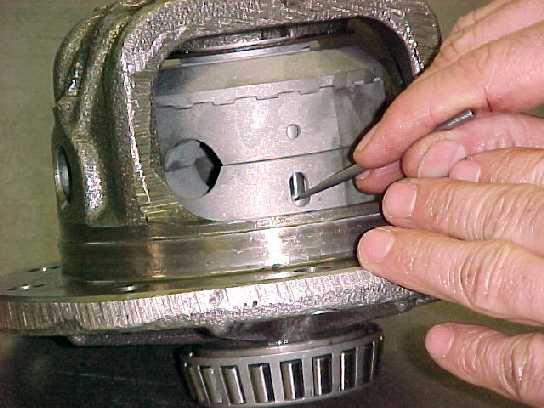

| Push
pins into mating half |

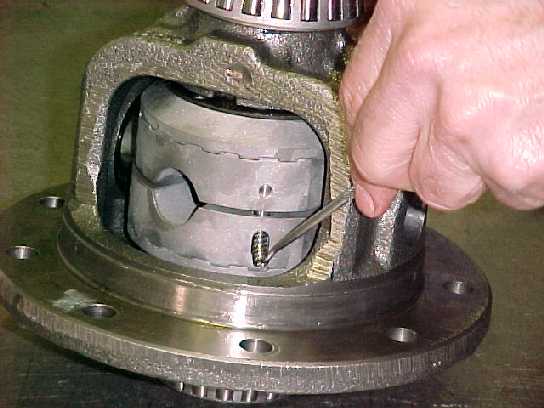

Push
spring pairs in behind pins |
|
|
|
Check
intercam spacing 150-170"
|

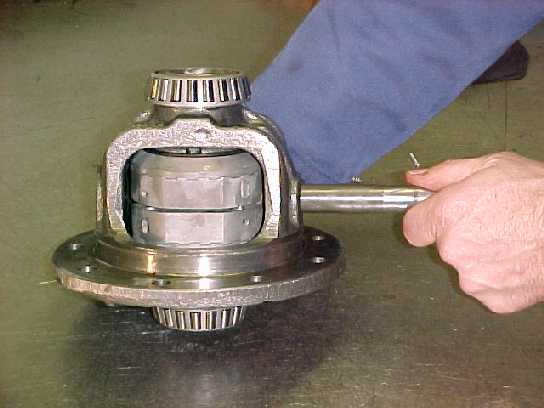

Slide
cross shaft in - reassemble |
|
