These
photographs represent the critical points of the installation
of a LOKKA - however some models are far simpler
to fit.
A
comprehensive owners manual, including fitting instructions,
comes with each LOKKA. Please read the entire booklet
and complete the warranty information on the last page of
the booklet.
Nissan
4 Pinion - suits Patrol GQ/GU (front leaf), Surf (rear),
All Toyota LSD rear (L/Cruiser, Prado, 4Runner, Hilux, Bundera),
Pathfinder, Terrano, Dana (some)
|
|
|
| Mark
carrier caps |
Do
NOT alter carrier adjusters |
|
|
|

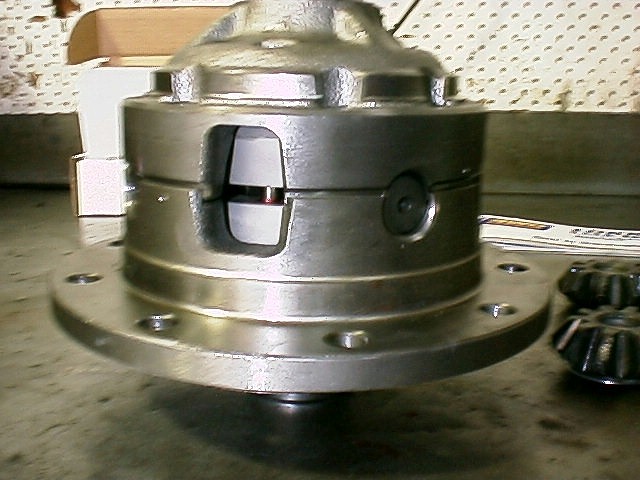

| Remove
carrier assembly |
Remove
spider |
|
|
|
| Remove
thrust washers |
check
side gear teeth |
|
 |
|
| Check
spacer clearance is 6-20" |
Check
other housing is 6-20" |
|
|
|
Fit
pins & spring pairs
|
Position
mating halves, no spider |
|
|
|
Check
inter-cam gap is 190-240"
|
Position
mating halves, no spider |
|
|
|
| Reassemble |
|
|
