The
load carrying capacity of a roof rack and its ability to withstand
the rigours of 4WD driving is highly dependant upon its design,
the mounting system, the choice of materials and quality of
finish.
|
|
|
| |
|
4WD
Systems manufacture an extensive range of steel roof
racks to suit most makes and models of 4WD vehicles.
A
Systems Roof Rack allows
you to carry all the extra gear needed when touring
that is either unsuitable or unsafe for the interior
of the modern 4WD but without the cost or off-road
limitations imposed by towing a trailer.
|
|
Designed
for load carrying capacity and functionality, all racks are
supplied with a heavy duty spare wheel
mount. They are optionally available with
light and aerial mounts, hi-lifting jack mounts, long handle
shovel holders, ladders and a variety of manufactured options
suitable for tradesman, dinghy owners and a host of custom
options.
Finished
in a choice of powdercoat, paint or
zinc plate, the Systems roof rack is hard wearing,
resists scratching and the galvanised mesh doesn't rust on
this wear prone area.

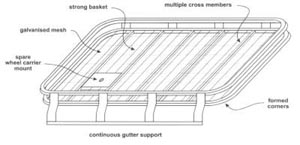

The
continuous gutter mounting system
is probably the most important design feature of a Systems
roof rack. This design allows the weight of a rack to be distributed
evenly over the entire length of the gutter as opposed to
a few individual points on a conventional rack. Modern 4WD
gutters need this support. The uprights are tied together
by the contoured continuous gutter strip which results in
a more secure attachment system, less prone to vibration,
shifting or bending the uprights.
The
optional full mesh basket, made
from formed tubing, looks good and will not crack even after
extended vibration or due to heavy loads because there are
no butt welded corners. The mesh is supported by multiple
cross members meaning more load can be carried without the
mesh sagging on the roof. Two people are easily supported
for loading purposes. |
