Air Bag Suspension
Search for Air Bag Suspension and related items in our webshop
Sold as Kits with all components - air lines, valves, ties & fasteners
Coil Bags - Fit inside the coils
Bellows Bags - Mount between the chassis & differential housing on Leaf sprung vehicles
Both used to support load by varying air pressure.
Both can be used for Extra Stability (rather than actual load carrying) for high loads.
Each application is specifically designed to maximise the safe load carrying capacity and stability of the vehicle, without increasing the manufacturers Gross Vehicle Mass (GVM).
Maintains front to rear level, hence improves braking effectiveness, and improved steering control with heavy loads or heavy towing. eg Slide-on Campers, Water Tanks/Fire units, Horse floats, Boats and Caravans.
Increases side stability.
Adjustable to suit varied load mass, even varying inflation in each bag to achieve side to side adjustment.
We can supply XHD springs but if your vehicle does big outback trips with heaps of weight and suspension articulation (eg Canning Stock Route, Simpson Desert Crossing, Cape York etc), then airbags will provide not only 'load assist' but also limit shock-absorber overheat and shock-absorber tower failure.
It is not recommended that airbags ONLY are used, except for moderate use on reasonable roads. The single point loading that comes from not sharing the load into the chassis via the spring mounts (hence 3 load points for leaf spring vehicles) can result in chassis damage in excessively loaded vehicles driven for extended periods over harsh terrain.
If used in conjunction with HD springs, the load is shared into the 3 points of the chassis, hence substantially reducing any risk of chassis problems.
If existing air bags are fitted, then spacer blocks can be added to make these bags useful with higher springs.
Available for a wide range of models.
View More Photos
Air Bag Kit fitted to Mazda BT50 Pre-2011

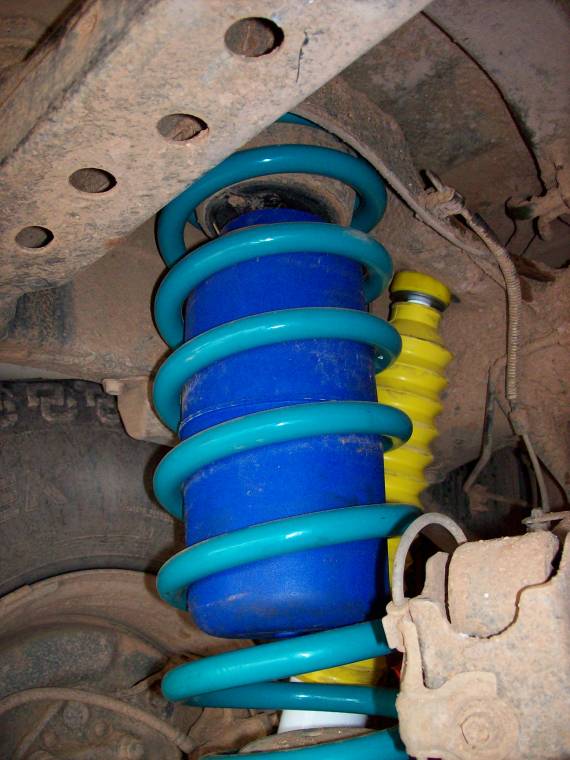

Coil Air Bag Kit suit Landcruiser 100Series - similar for most coil applications
Air Bag Suspension fitted to Toyota LCR 75 Series

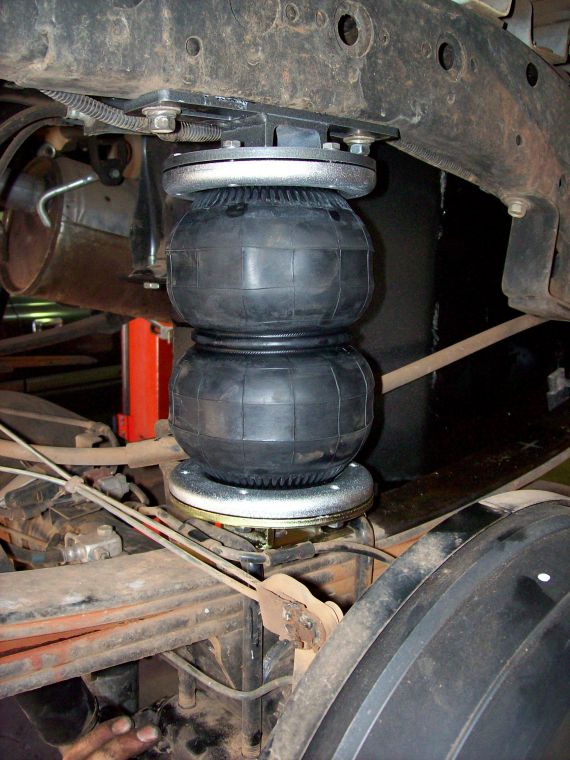

Air Bag Suspension fitted to Nissan D22 with Original Leafs

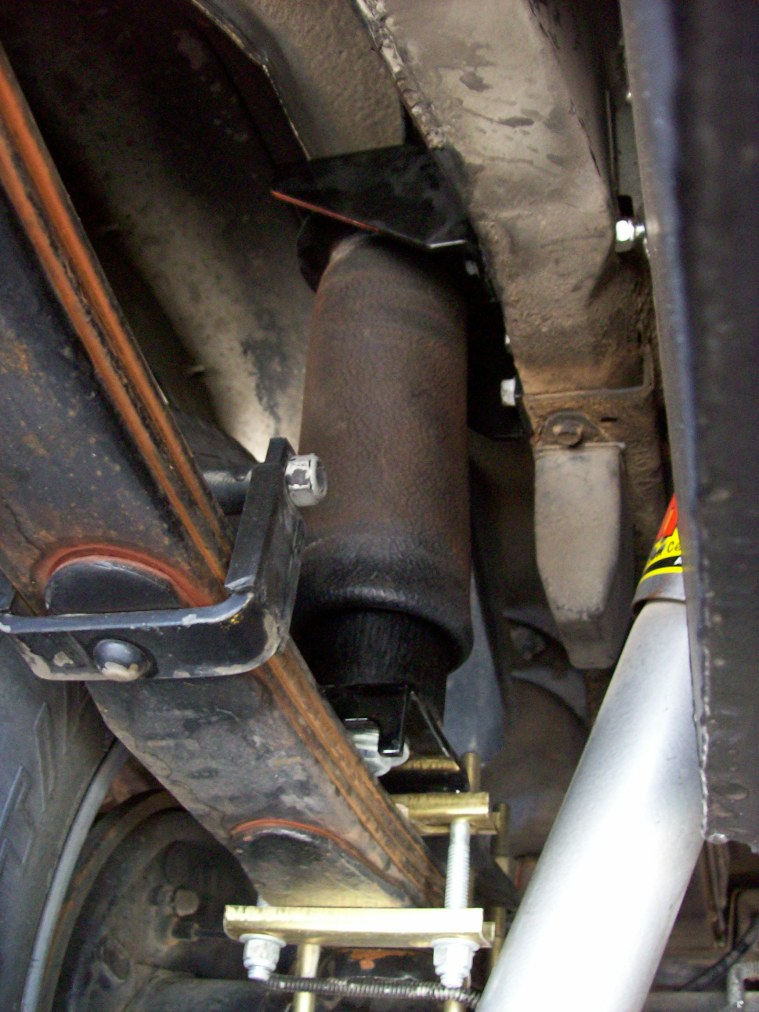

Air Bag Suspension fitted to Jeep Cherokee XJ - Standard leafs
Air Bag Suspension fitted to Jeep Cherokee XJ - Raised leafs
View More Photos
